Basic information of mini linear actuator
•Operating temperature -40°C~+65°C
•Aluminium outer tube and stroke rod
•Protection IP65
•12 or 24 or 36 or 48VDC •Zinc alloy housing
•Preset limit switches •Low price
•Powder metal gears •RobustCE DATA
•Max load 1200N
•Duty cycle 25%
•Max static force 1200N
•Life time 20 000 complete cycles

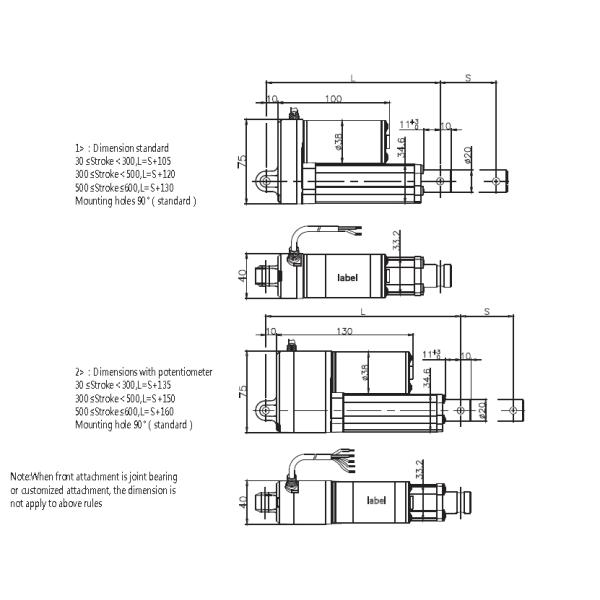

Drawing of linear actuator
Drawing of Linear actuator With Joint Bearing
Load, speed and current of linear actuator
Instal way of Linear Actuator
Features of linear actuator
- Smooth linear operation
- Built-in limit switches (not movable)
- Potentiometer feedback
- Aluminum inner and outer tube
- Zinc alloy housing
- Powder metal gears
- Lubrication for extended life
- Clevises both ends
- Shorter pin-to-pin length than tubular actuators
The linear actuator without potentiometer dimension
for you reference
| Stroke size(Inches) | Closed length(Inches) | Extended length(Inches) |
| 2'' | 6.10'' | 8.07'' |
| 4'' | 8.07'' | 12'' |
| 6'' | 9.92'' | 16.1'' |
| 8'' | 12.1'' | 20.1'' |
| 10'' | 14.1'' | 24.1'' |
| 12'' | 16.73'' | 28.74'' |
HB Engineering's series of actuators have a proven history of reliability and dependability
in a wide range of applications that include, among others:
- Car brake system
- Sweeper
- Window opener
- Agricultural equipment
- Door opener
- Small solar tracker
- Generator set
- Treadmill
- Seaplane
- Disabled car
Package & Shipping
1. Carton packing 2. Wooden packing 3. customize
All linear actuator can be packed according to customer’s requirement.1.We would supply the free maintenance within 12 months permanent.
